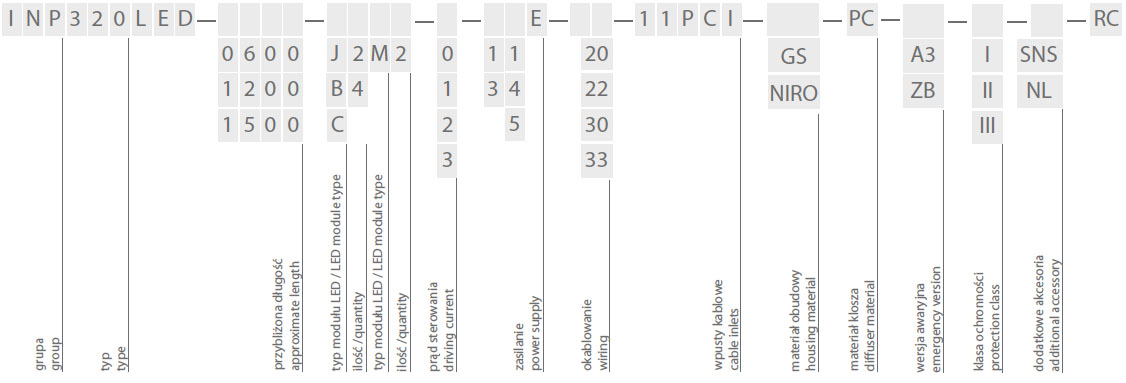

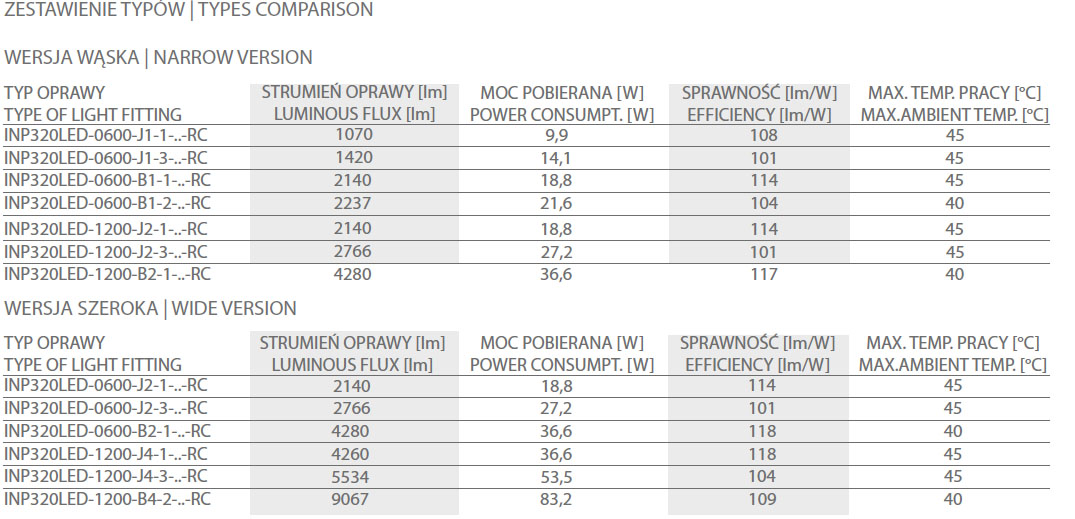

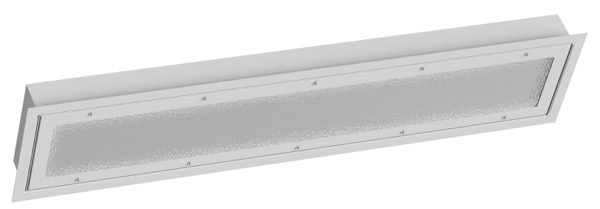

INP320LED-..-RC Download Data sheet Manual EU declaration Photometry Vandal proof light fitting with LED modules chracterised with high impact resistance factor (IK10+). Housing made of galvanized steel, diffuser made of thick polycarbonate. Light fitting equipped with frame covering the mounting hole. Technical specification Dimensions Types comparision Available configuration Technical specification Dimensions Types comparision Available configuration Technical specification TECHNICAL DATA: Light source: LED modules PHOTOMETRY Protection class: I,II,III IK: 10+ Protection degree: IP65 CRI: > 80 Power factor: ≥ 0,95 Long lifetime: > 70.000h L80B10 Colour temperature: 4000K Ambient temperature: from -30°C to +45°C CONSTRUCTION: Housing: galvanized or stainless steel sheet, powder painted Diffuser: polycarbonate Mounting plate: galvanized steel sheet MOUNTING: Light fitting designed for direct installation on ceiling or wall. ELECTRICAL UNIT: 230V, 0/50-60Hz, terminal block 2x2.5 mm2 or 24V DC Dimensions NARROW VERSION TYPE L L1 L2 B B1 H D INP320LED-0600-..-RC 730 680 580 200 150 100 60 INP320LED-1200-..-RC 1360 1310 800 200 150 100 160 WIDE VERSION TYPE L L1 L2 B B1 H D INP320LED-0600-..-RC 730 680 580 305 255 100 60 INP320LED-1200-..-RC 1360 1310 800 305 255 100 160 Types comparision Available configuration
