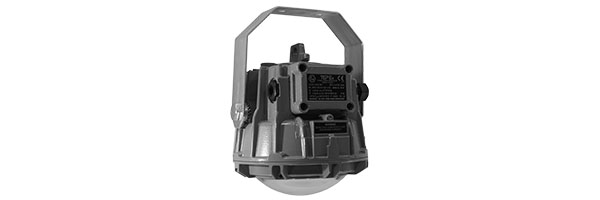

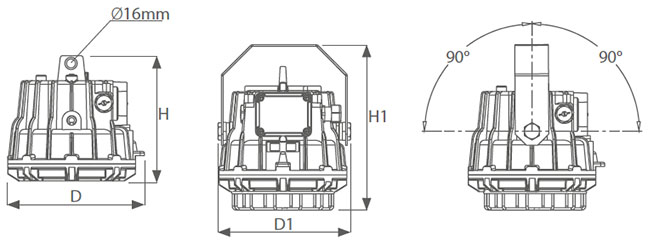

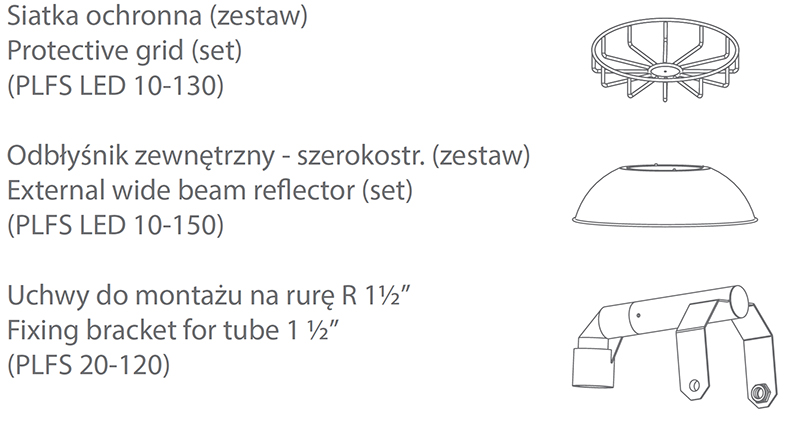

PLFS LED II 2G Ex d e IIC T6/T5 GbII 2D Ex tb IIIC T80°C/T85°C Db Download Data sheet Manual Photometry ATEX Certificate LED light fitting destined to work in 1,21 and 2,22 of explosion hazard zones. Light fitting is equipped with eliptical diffuser and mounting bracket as a standard. Technical data Dimensions Accessories Technical data Dimensions Accessories Technical data TECHNICAL DATA: Light source: LED modules PHOTOMETRY Protection class: I IK: 08 Protection degree: IP66 Long lifetime: >70 000 hours Ambient temperature: from -40°C to +40°C / +50°C °C CRI: >80 BUDOWA: Housing: aluminium cast Diffuser: borsilicate glass MOUNTING: Light fitting designed for suspending (pendant, on pipe, on wall, on ceiling) ELECTRICAL UNIT: Voltage: 90-305V AC, 127-431 V DC Terminal block: L1, L2, L3, N; max. 2 x 2,5 mm2 2x M25 CERTIFICATES: EXA 14 ATEX 0028 Dimensions TYPE H H1 D D1 PLFS-N-100LED 240 320 268 240 Accessories
