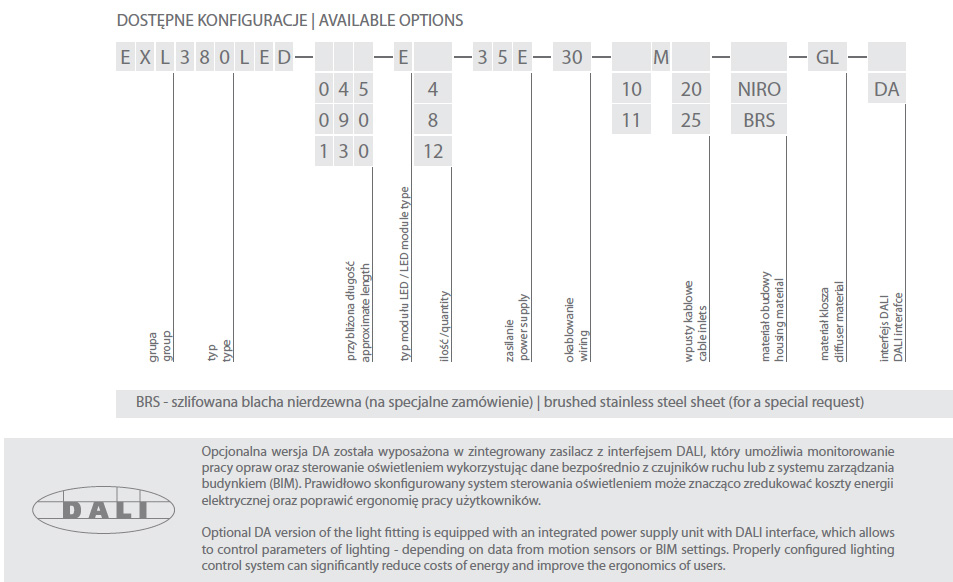

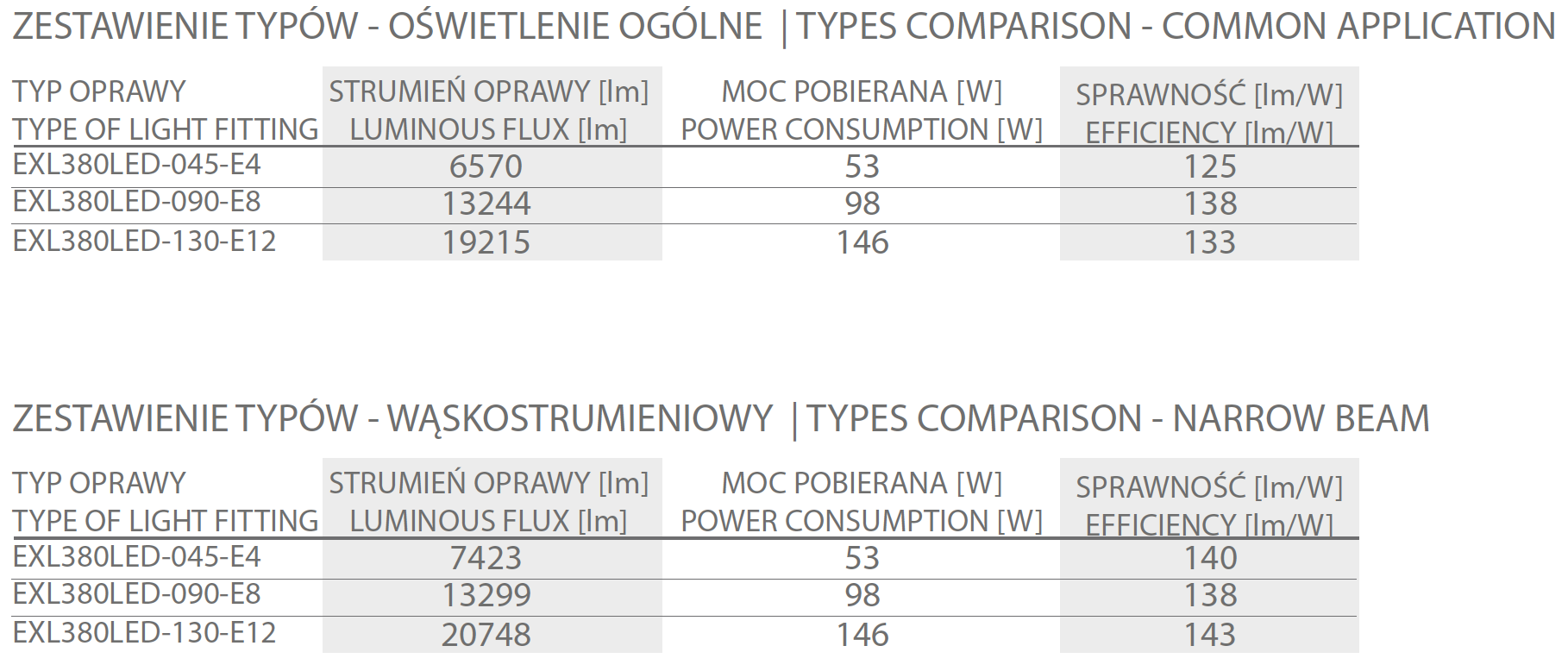

EXL380LED Ex ec op is IIC T4 Gc Ex tb op is IIC T70°C or T80°C Db Download Data sheet Manual EU Declaration ATEX certificate IEXEx certificate Photometry Explosion proof light fitting with LED modules and special optics. Designed to use in zones 21 and 2,22 of gas and steam of flammables liquids, as well as combustible dusts and fibers explosion hazard areas. Product video Technical data Dimensions Types comparison Available configurations Product video Technical data Dimensions Types comparison Available configurations Product video Technical data TECHNICAL DATA: Light source: LED modules PHOTOMETRY Protection class: I Protection degree: IP65 CRI: >80 Power factor: >0,97 Long lifetime: >70 000 hours L80B10 Colour temperature: 4000K Ambient temperature: od -40°C do +40°C CONSTRUCTION: Housing: stainless steel Diffuser: tempered glass MOUNTING: Light fitting for direct installation with use of bracket. ELECTRICAL UNIT: Voltage: 230V, 0/50-60Hz Terminal block: 3x2,5 mm2 (L, PE, N) or 5x2.5 mm2 (L1, L2, L3, PE, N) CERTIFICATE: KDB 15ATEX0049X IECEx KDB 20.0003X PRIZES: IIIrd place in the competition for the most innovative product of the Light 2017 fair Dimensions TYPE L B H H1 L1 L2 L3 L4 EXL380LED-045-E4 405 386 69 321 434 130 220 290 EXL380LED-090-E8 642 386 69 321 - 150 250 335 EXL380LED-130-E12 885 386 69 321 - 150 250 335 Types comparison Available configurations BRS - brushed stainless steel sheet (for a special request)
