| TECHNICAL DATA: |
|
Light source: |
LED modules |
|
PHOTOMETRY |
| |
|
Protection class: |
I |
|
 |
| |
|
Protection degree: |
IP67 |
|
| |
|
CRI: |
> 80 |
|
| |
|
Power factor: |
≥ 0,95 |
|
| |
|
Long lifetime: |
> 50.000h L70B10 |
|
| |
|
Colour temperature: |
4000K |
|
| |
|
Ambient temperature: |

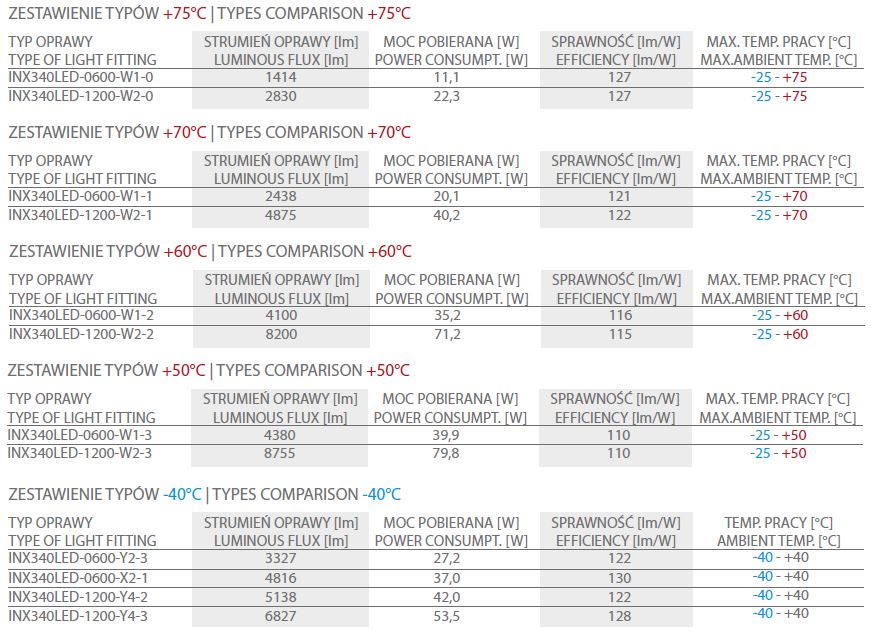

od -40°C do +75°C* (see types comparision) |
|
| |
|
|
|
|
| CONSTRUCTION: |
|
Housing: |
galvanized or stainless steel sheet, powder painted |
|
| |
|
Diffuser: |
uv resistant polycarbonate |
|
| |
|
Mounting tray: |
galvanized steel sheet, powder painted |
|
| |
|
Clamps: |
stainless steel |
|
| |
|
|
|
|
| MOUNTING: |
|
Luminaire for direct installation on ceiling or wall with use of mounting bracket. |
|
| |
|
|
|
|
| ELECTRICAL UNIT: |
|
Voltage: |
120-277VAC, 50/60Hz for high temp. versions |
|
| |
|
|
230V, 0/50-60Hz for low temp. versions |
|
| |
|
Terminal block: |
3x2.5 mm2 |
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
