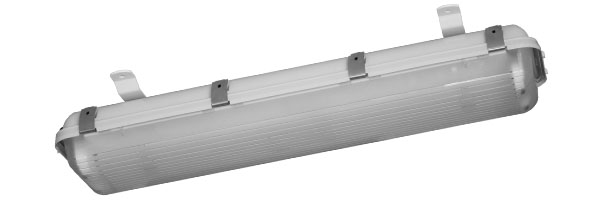

Waterproof and dust proof luminaire for linear fluorescent T5 and T8 characterized by a polycarbonate diffuser, housing resistant to UVA and stainless steel buckles. |
Technical specification
TECHNICAL DATA: | Light source type: | T8, T5 | PHOTOMETRY | ||
Lampholder | G13, G5 | ||||
Protection class: | I | ||||
Protection degree: | IP66, IP67 | ||||
Power factor: | ≥ 0,95 | ||||
Ambient temperature: | from -25°C to +50°C | ||||
CONSTRUCTION: | Housing: | polycarbonate UV stabilized | |||
Diffuser: | polycarbonate UV stabilized | ||||
Mounting plate: | galvanized steel sheet, powder painted | ||||
Clamps: | stainless steel | ||||
Reflector: | polished aluminium typu ALANOD MIRO 4 | ||||

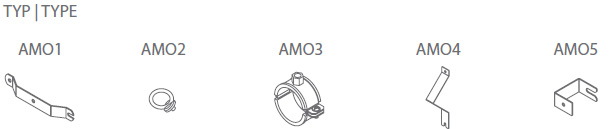

MOUNTING: | Luminaire for direct ceiling or wall installation with use of mounting holes or additional mountintgs brackets. |
||||
ELECTRICAL UNIT: | Terminal block: 3x4 mm2 | ||||
CERTIFICATES: | CNBOP certificate | ||||
PKP PLK approval |
