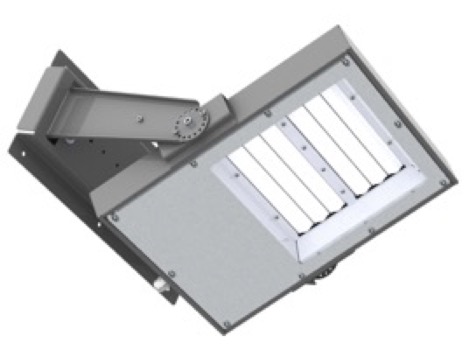

Anticorossive, waterproof industrial luminaire with LED modules for indoor and outdoor applications. Thanks to use of special vibro-insulators it is suitable to work in places exposed to the occurrence of vibrations. |
Technical specification
TECHNICAL DATA: | Light source: | LED modules | PHOTOMETRY | ||
Protection class: | I | ||||
Protection degree: | IP65 | ||||
CRI: | > 80 | ||||
Power factor: | ≥ 0,95 | ||||
Long lifetime: | > 70.000h L80B10 | ||||
Colour temperature: | 4000K | ||||
Ambient temperature: | from -25°C to +50°C | ||||
COUNSTRUCTION: | Housing: | powder painted stainless steel or galvanized steel | |||
Diffuser: | sanded tempered glass or polycarbonate | ||||
Reflector: | aluminium | ||||
Mounting plate: | aluminium | ||||

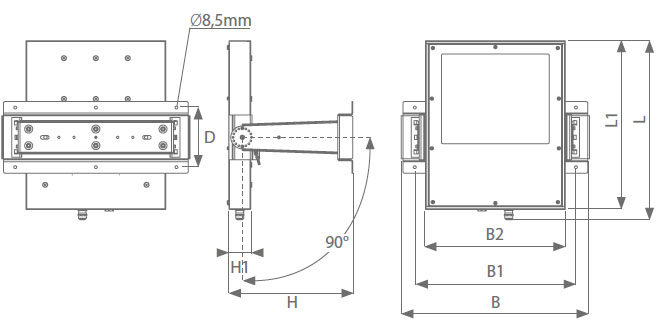

MOUNTING: |
Light fitting for direct installation on surfaces exposed to strong vibrations with use of mounting brackets. Can be mounted both on the wall and ceiling. |
||||
ELECTRICAL UNIT: | 230V, 0/50/60Hz, terminal block 3x2.5 mm2 | ||||
