| TECHNICAL DATA: |
|
Light source: |
LED modules |
|
FPHOTOMETRY |
| |
|
Protection class: |
I and III |
|
 |
| |
|
Protection degree: |
IP69K |
|
| |
|
CRI: |
> 80 |
|
| |
|
Power factor: |
≥ 0,95 |
|
| |
|
Long lifetime: |
> 50.000h L70B10 |
|
| |
|
Colour temperature: |
4000K, 5000K, 6500K |
|
| |
|
Ambient temp.: |
od -25°C do +45°C |
|
| |
|
|
|
|
| CONSTRUCTION: |
|
Housing: |
Borosilicate glass/PMMA/PC |
|
| |
|
Mounting plate: |
powder painted galvanized steelo |
|
| |
|
End-cap: |
aluminum or stainless steel |
|
| |
|
|
|
|

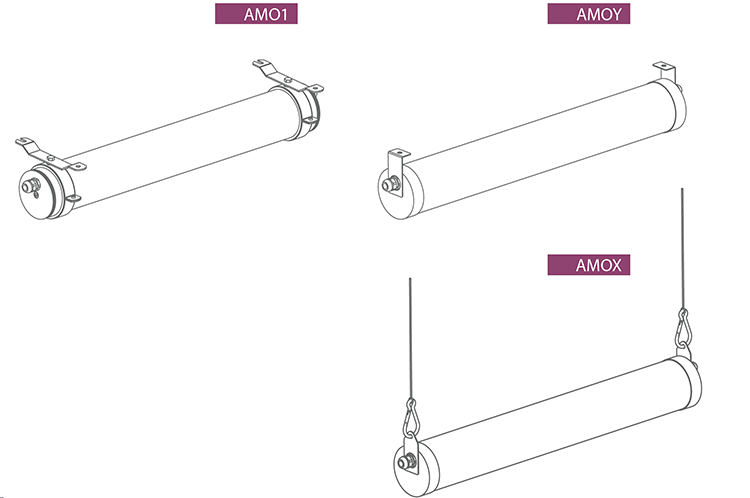

| MOUNTING: |
|
Luminaire for direct installation on ceiling or wall. |
|
| |
|
|
|
|
| ELECTRICAL UNIT: |
|
230V, 0/50-60Hz, terminal block 3x2.5 mm2 |
|
| |
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
