Technical specification
| TECHNICAL DATA: |
|
Light source: |
LED modules |
|
PHOTOMETRY |
| |
|
Protection class: |
I |
|
 |
| |
|
Protection degree: |
IP66, IP67 |
|
| |
|
CRI: |
> 80 |
|
| |
|
Power factor: |
≥ 0,95 |
|
| |
|
Long lifetime: |
> 70.000h L80B10 |
|
| |
|
Colour temperature: |
4000K |
|
| |
|
Ambient temperature: |
od -25°C do +45°C |
|
| |
|
|
|
|
| CONSTRUCTION: |
|
Housing: |
galvanized or stainless steel sheet, powder painted |
|
| |
|
Diffuser: |
UV resistant polycarbonate |
|
| |
|
Mounting tray: |
galvanized steel sheet, powder painted |
|
| |
|
Clamps: |
stainless steel |
|
| |
|
|
|
|
| MOUNTING: |
|

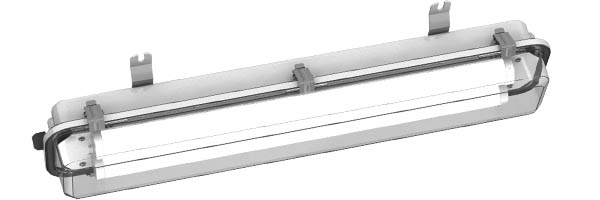

Luminaire for direct installation on ceiling or wall with use of mounting bracket. |
|
| |
|
|
|
|
| ELECTRICAL UNIT: |
|
Voltage: |
230V, 0/50-60Hz |
|
| |
|
Terminal block: |
3x2.5 mm2 |
|
| |
|
|
|
|
Dimensions
| TYPE |
L |
L1 |
B |
B1 |
H |
| INS340LED-0600 |
730 |
430 |
190 |
160 |
134 |
| INS340LED-1200 |
1340 |
950 |
190 |
160 |
135 |
Types comparison
* power consumption savings of INS340LED light fitting compared to others producers standard T8 light fittings
** power consumption savings of INS340LED light fitting compared to other producers standard T8 light fittings, assuming basing on equal light flux of compared devices
Available configurations
