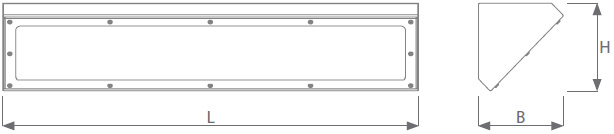

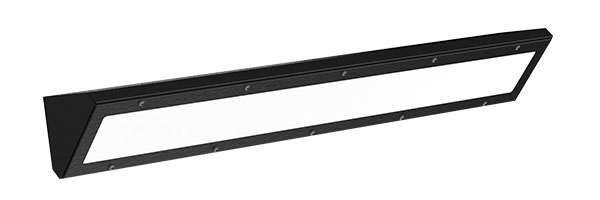

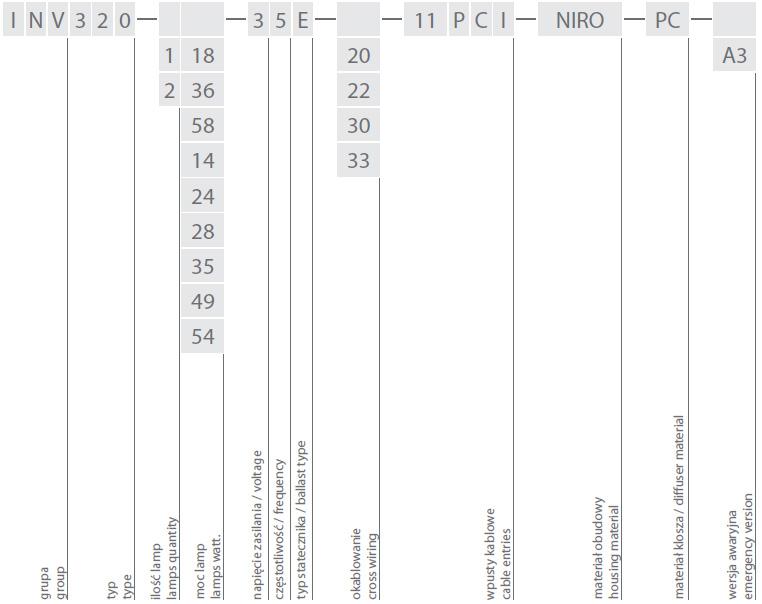

INV320 Download Data sheet Manual EU Declaration Photometry Corner, vandal proof luminaire for linear fluorescent T5 and T8 characterized by a very high degree of shock resistance (IK10 +). 2.01 Special closing prevents unauthorized access. The luminaire is in protection class II. Technical specification Dimensions Types comparison Impact tests Technical specification Dimensions Types comparison Impact tests Technical specification TECHNICAL DATA: Light source type: T8, T5 Protection class: I or II Protection degree: IP65 Power factor: ≥ 0,95 Ambient temperature: from -25°C to +50°C IK: 10+ CONSTRUCTION: Housing: powder painted stainless steel sheet Diffuser: polycarbonate Mounting plate: galvanized steel sheet, powder painted MOUNTING: Luminaire for direct installation on wall. ELECTRICAL UNIT: Terminal block: 4 mm2 CERTIFICATES: CNBOP PKP PLK approval accredited >IK10 (IK10+) impact tests Dimensions TYPE L B H INV320 - 18/14/24 755 170 170 INV320 - 36/28/54 1365 170 170 INV320 - 58/35/49 1665 170 170 Types comparison 18/36/58 - T8 fluorescent lamp, G13 lampholder14/24/28/35/49/54 - T5 fluorescent lamp, G5 lampholderA3 - version with 3h emergency module ADDITIONAL INFORMATIONLight fitting suitable to use in tunnels and underground pedestrian aisles. Thanks to it solid and robust construction high mechanical shock resistance is preserved. Special tool is required for uninstallation of light fitting to prevent access to it. Impact tests
