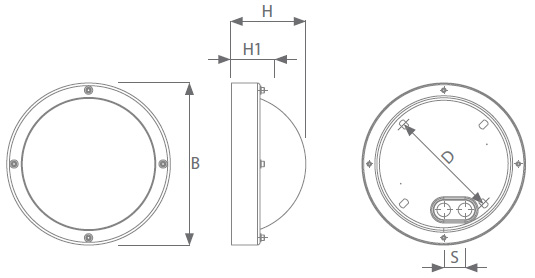

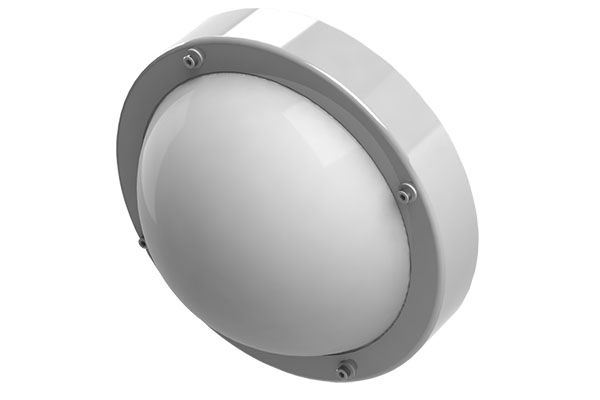

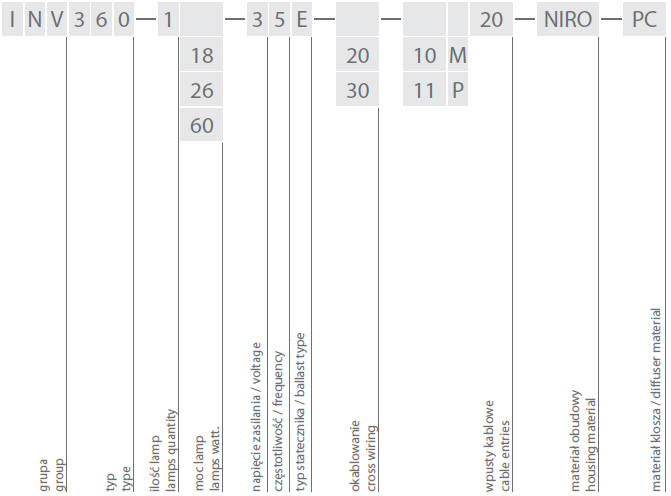

INV360 Download Data sheet Manual EU Declaration Photometry Waterproof luminaire for compact fluorescent and incandescent light bulbs. The housing is made of stainless steel. Diffuser made of thick polycarbonate. Special closing prevents unauthorized access. Technical specification Dimensions Types comparison Technical specification Dimensions Types comparison Technical specification TECHNICAL DATA: Light source type: TC-D, A Lampholder G24d-2, G24d-3, E27 Protection class: I or II Protection degree: IP67 Power factor: ≥ 0,85 Ambient temperature: from -25°C to +50°C IK: 10+ CONSTRUCTION: Housing: pressed stainless steel sheet, powder painted Diffuser: PC opal Mounting plate: stainless steel sheet, powder painted MOUNTING: Luminaire for direct installation on ceiling or wall. ELECTRICAL UNIT: Terminal block: 3x4 mm2 CERTIFICATE: PKP PLK approval Dimensions TYPE H H1 B S D INV360 105 46 247 32 170 Types comparison 18 - TC-D lamp, G24d-2 lampholder26 - TC-D lamp, G24d-3 lampholder60 - light bulb, E27 lampholder ADDITIONAL INFORMATIONLight fitting suitable to use in tunnels and underground pedestrian aisles. Thanks to it solid and robust construction high mechanical shock resistance is preserved. Special tool is required for uninstallation of light fitting to prevent access to it.
