Technical specification
| TECHNICAL DATA: |
|
Light source: |
LED modules |
|
PHOTOMETRY |
| |
|
Protection class: |
I |
|
 |
| |
|
IK: |
10+ |
|
| |
|
Protection degree: |
IP65 |
|
| |
|
CRI: |
> 80 |
|
| |
|
Power factor: |
≥ 0,95 |
|
| |
|
Long lifetime: |
> 70.000h L80B10 |
|
| |
|
Colour temperature: |
4000K |
|
| |
|
Ambient temperature: |
od -30°C do +45°C |
|
| |
|
|
|
|
| CONSTRUCTION: |
|
Housing: |
pressed stainless steel sheet, powder painted |
|
| |
|
Diffuser: |
PC opal |
|
| |
|
Mounting tray: |
aluminum sheet or steel sheet, powder painted |
|
| |
|
|
|
|
| MOUNTING: |
|
Light fitting for direct installation on ceiling or wall. |
|
| |
|
|
|
|
| ELECTRICAL UNIT: |
|
Voltage: |
230V, 0/50-60Hz |
|
| |
|
Terminal block: |
3x2.5 mm2 |
|
| |
|
|
|
|
Dimensions
| TYP |
H |
H1 |
B |
S |
D |
F |
| INV360LED |
105 |
46 |
247 |
90 |
110 |
120 |

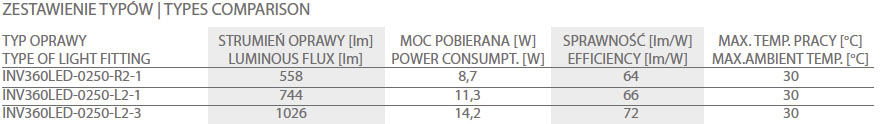

Types comparison
* power consumption savings of INV360LED light fitting compared to others producers standard T8 light fittings
** power consumption savings of INV360LED light fitting compared to other producers standard T8 light fittings, assuming basing on equal light flux of compared devices
Available configurations
