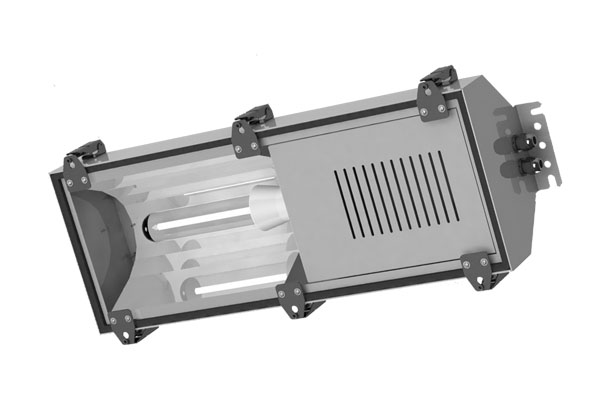

EXL360 II 3G Ex nR IIC T3-T2 GcII 3D Ex t IIIC T165°C-260°C IP65 Dc Download Data sheet Manual EU Declaration Photometry Explosion proof floodlight for high pressure discharge lamps designed to light in Zone 2,22 of explosion hazardous area. The housing is made of galvanized steel, tempered glass diffuser. Technical specification Dimensions Types comparison Technical specification Dimensions Types comparison Technical specification TECHNICAL DATA: Light source type: HI, HS Lampholder E40 Protection class: I Protection degree: IP65 Power factor: ≥ 0,85 Ambient temperature: from -25°C to +50°C CONSTRUCTION: Housing: stainless steel Diffuser: 5mm thick tempered glass Reflector: hammered aluminium MOUNTING: Luminaire for direct installation on the ceiling. ELECTRICAL UNIT: Terminal block: 3x4 mm2 Dimensions Types comparison DODATKOWE INFORMACJEInner electrical connection is made with use of hight temperature resistant cable with silicone envelope. Sealing is made of durable silicone gasket. Mounting can be adopted for client special requirements.
