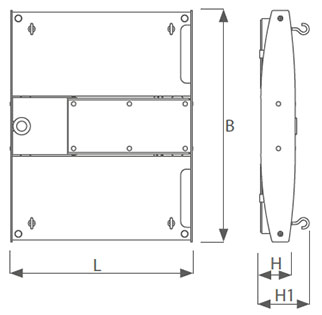

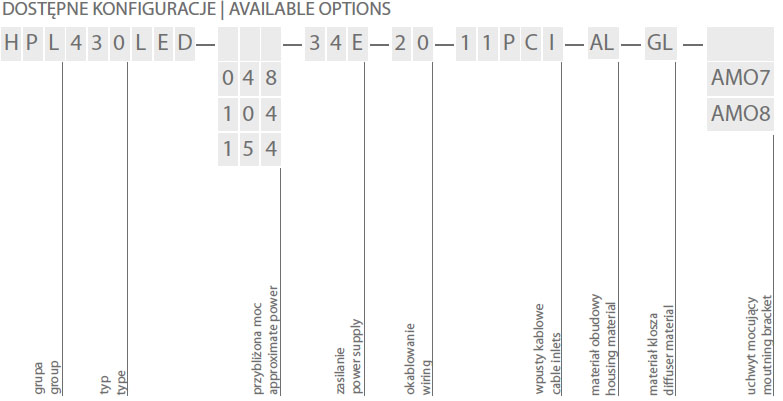

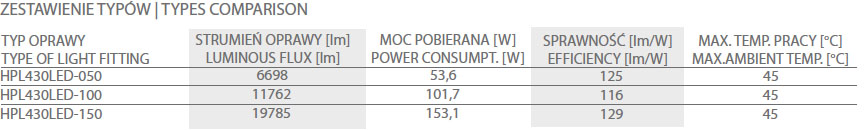

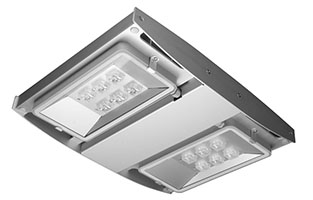

HPL430LED Download Data sheet Manual EU Declaration Photometry LED floodlight with high lumen output. Housing made of durable oxidized aluminium. Very high protection degree IP66. Light fitting available in many optics versions. Technical specification Dimensions Types comparison Available configurations Technical specification Dimensions Types comparison Available configurations Technical specification TECHNICAL DATA: Light source: LED modules PHOTOMETRY Protection class: II Protection degree: IP66 CRI: > 80 Power factor: ≥ 0,97 Long lifetime: > 50.000h L70B10 Colour temperature: 4000K Ambient temperature: od -30°C do +45°C CONSTRUCTION: Housing: oxidized aluminium profile Diffuser: tempered glass MOUNTING: Light fitting for direct installation on ceiling or wall with use of mounting bracket. ELECTRICAL UNIT: Voltage: 230V, 0/50-60Hz Terminal block: 2x4 mm2 Dimensions TYP L B H H1 HPL430LED 325 415 64 89 Types comparison Available configurations
