| TECHNICAL DATA: |
|
Light source type: |
linear LED fluorescent lamp |
|
PHOTOMETRY |
| |
|
Lampholder |
G13 |
|
 |
| |
|
Protection class: |
II |
|
| |
|
Protection degree: |
IP66, IP67 |
|
| |
|
Power factor: |
≥ 0,95 |
|
| |
|
Ambient temperature: |
from -35°C to +45°C |
|
| |
|
IK: |
10 |
|
| |
|
|
|
|
| CONSTRUCTION: |
|
Housing: |
galvanized or stainless steel sheet, powder painted |
|
| |
|
Diffuser: |
polycarbonate UV stabilized |
|
| |
|
Mounting plate: |
galvanized steel sheet, powder painted |
|
| |
|
|
|
|

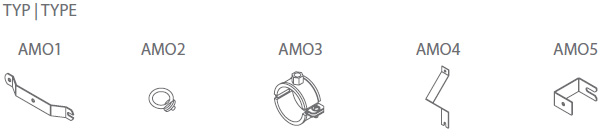

| MOUNTING: |
|
Luminaire for direct installation on ceiling, wall or suspending. |
|
| |
|
|
|
|
| ELECTRICAL UNIT: |
|
Terminal block: 2x2,5 mm2 |
|
| |
|
|
|
| CERTIFICATE: |
|
PKP PLK approval |
|
